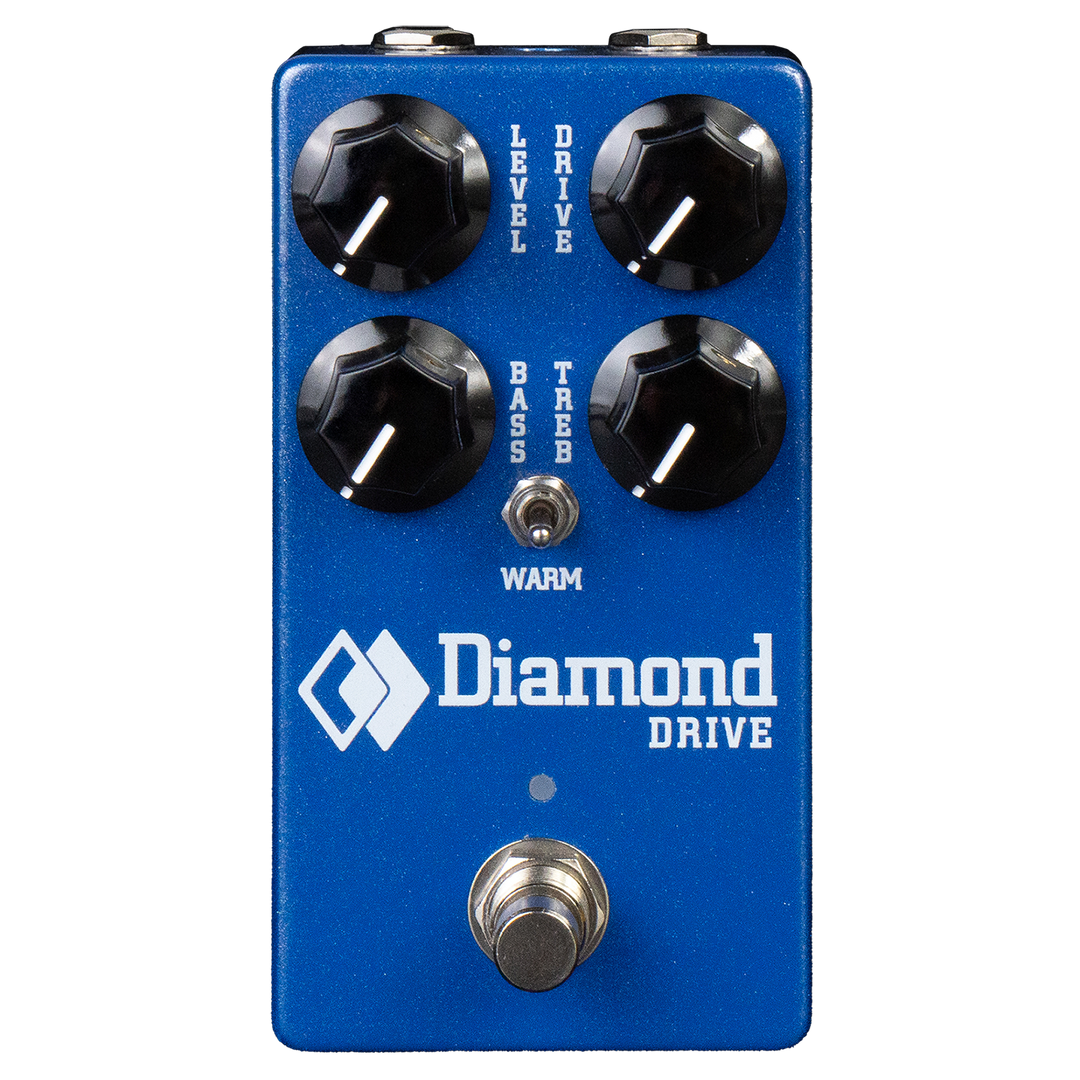

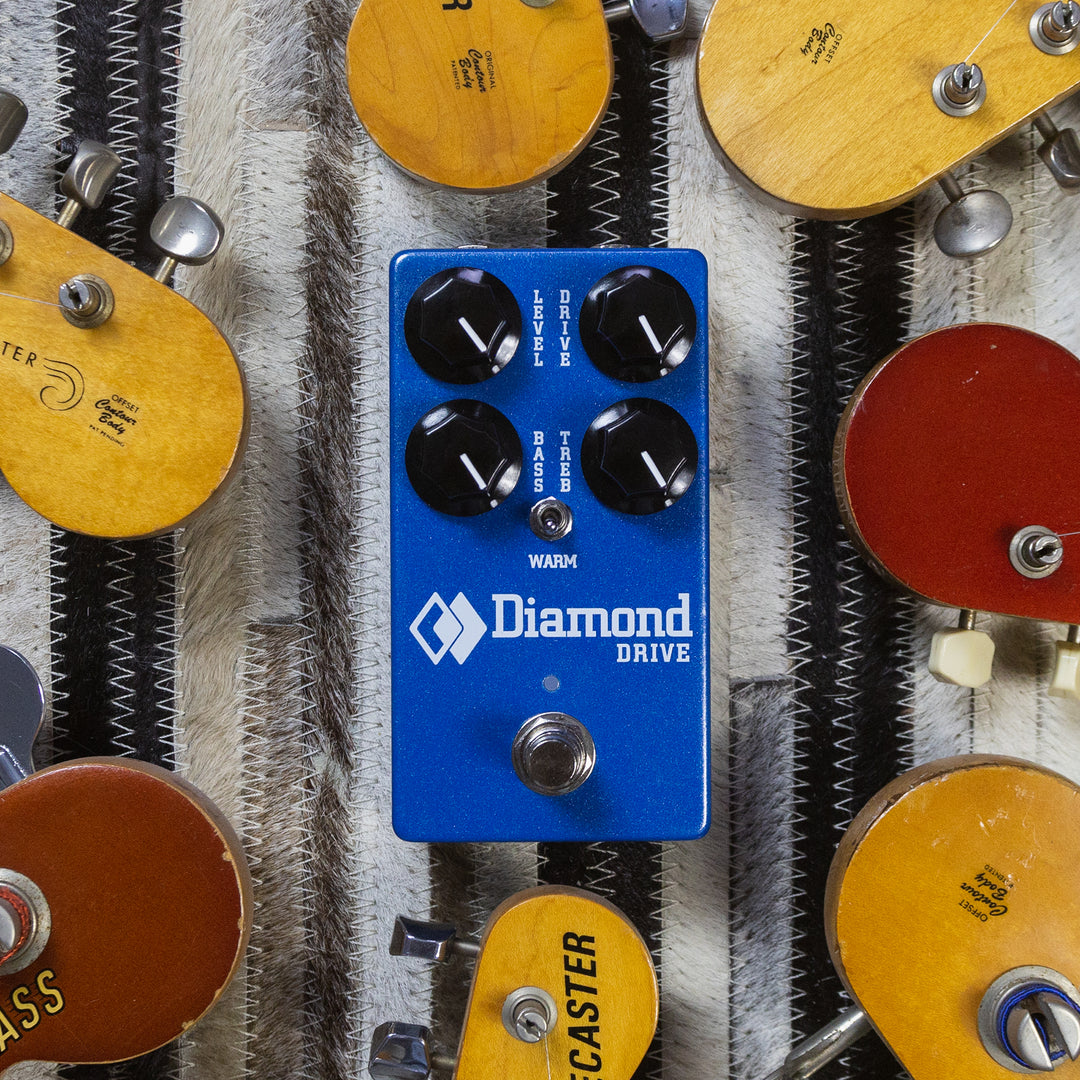

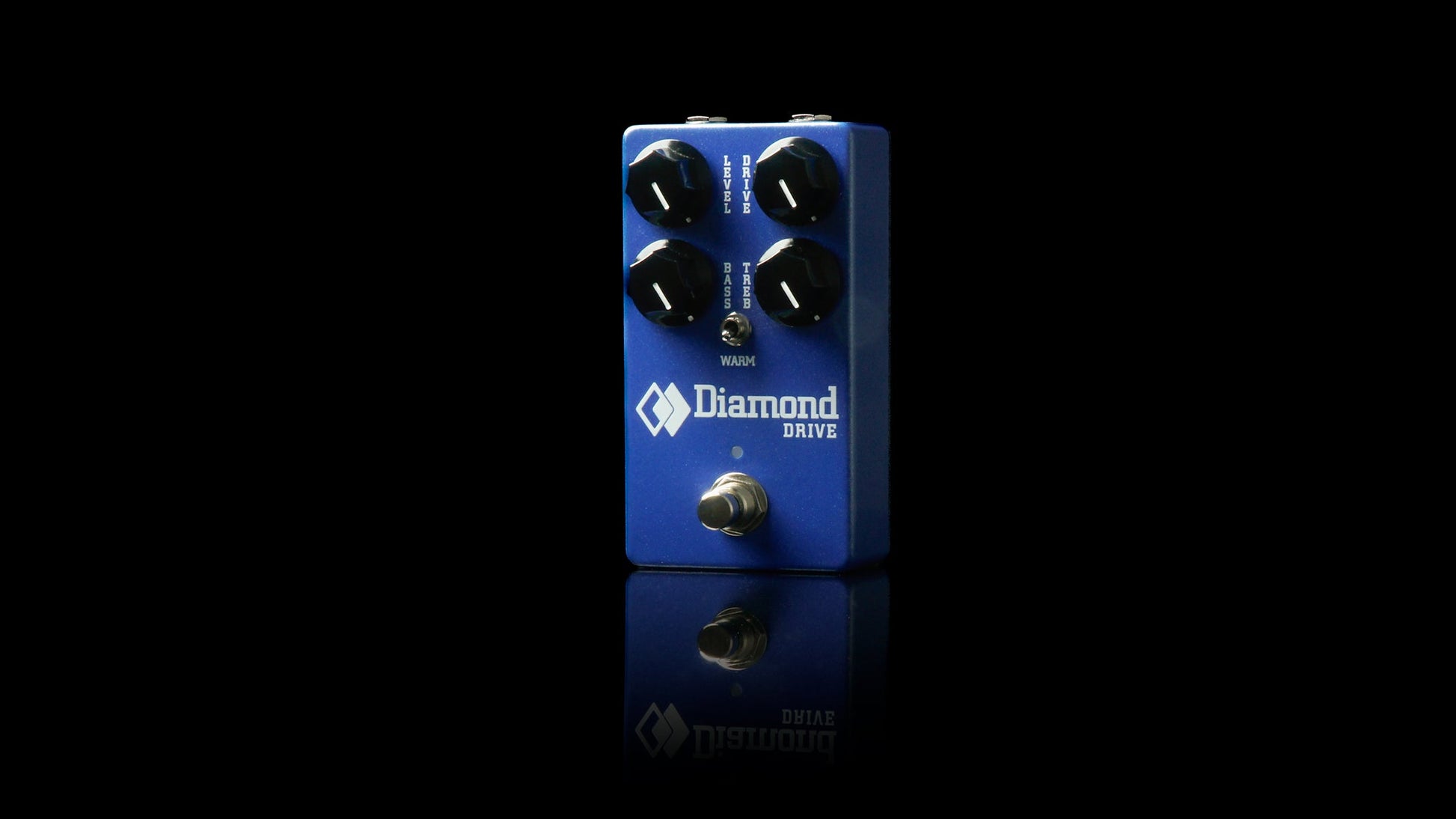

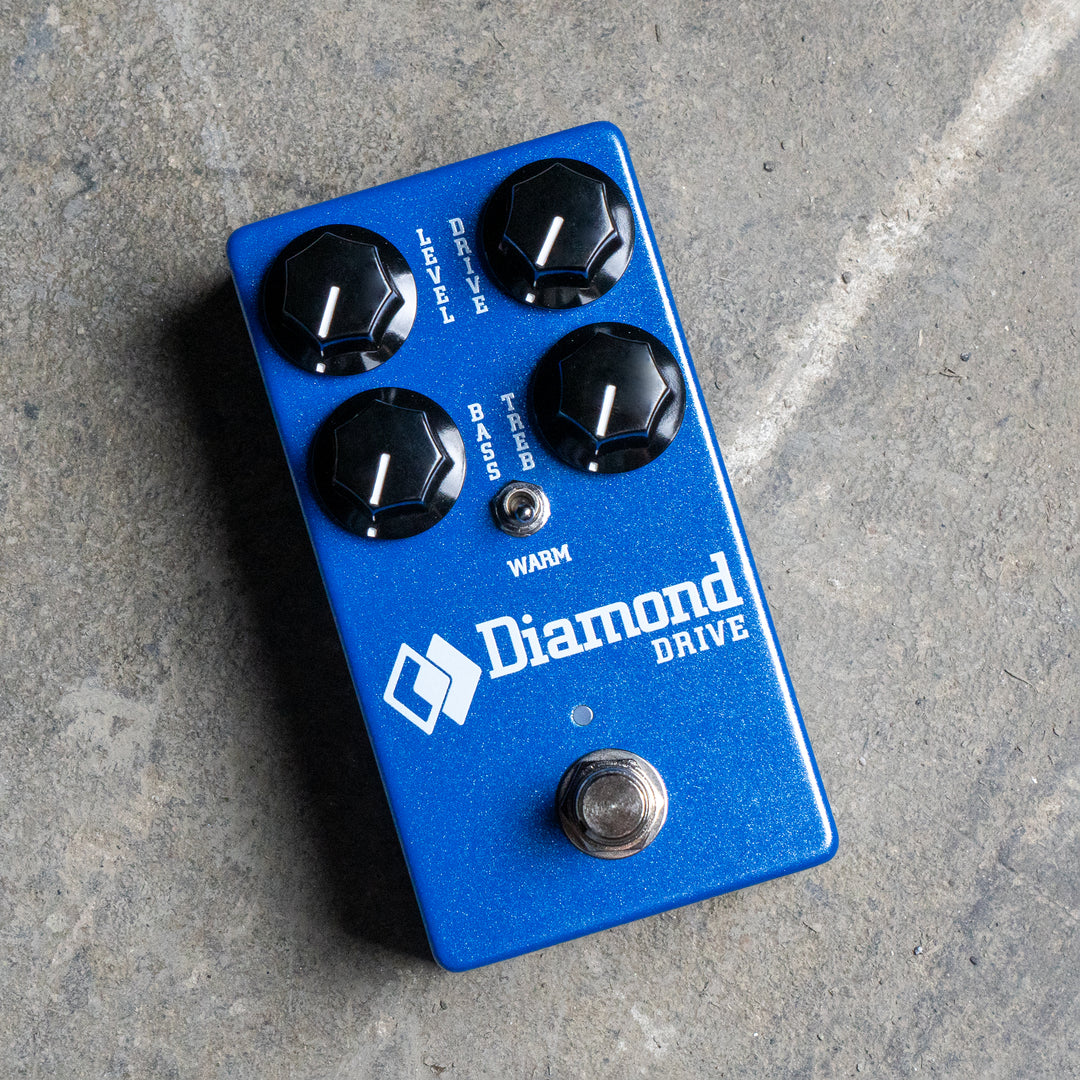

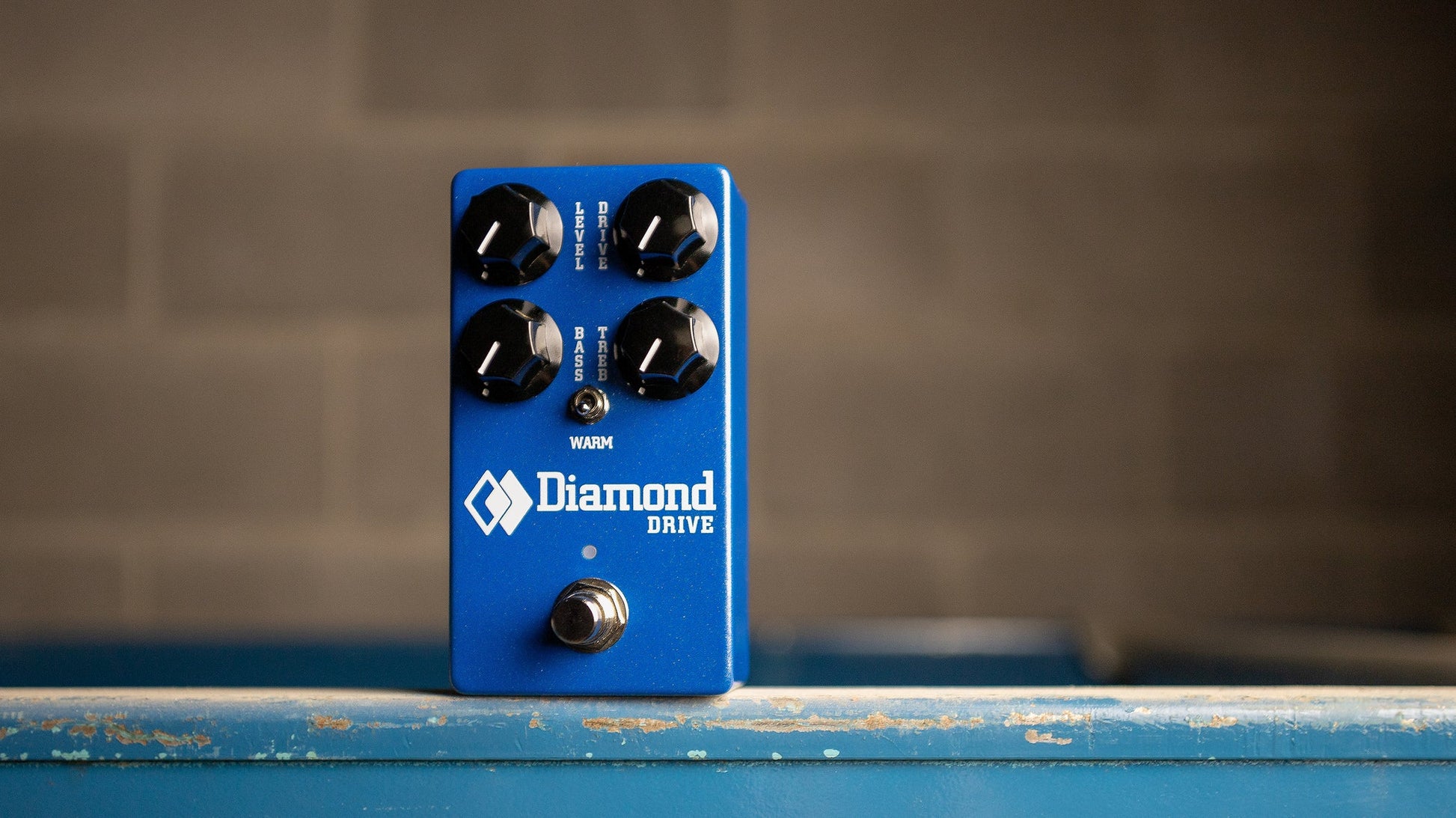

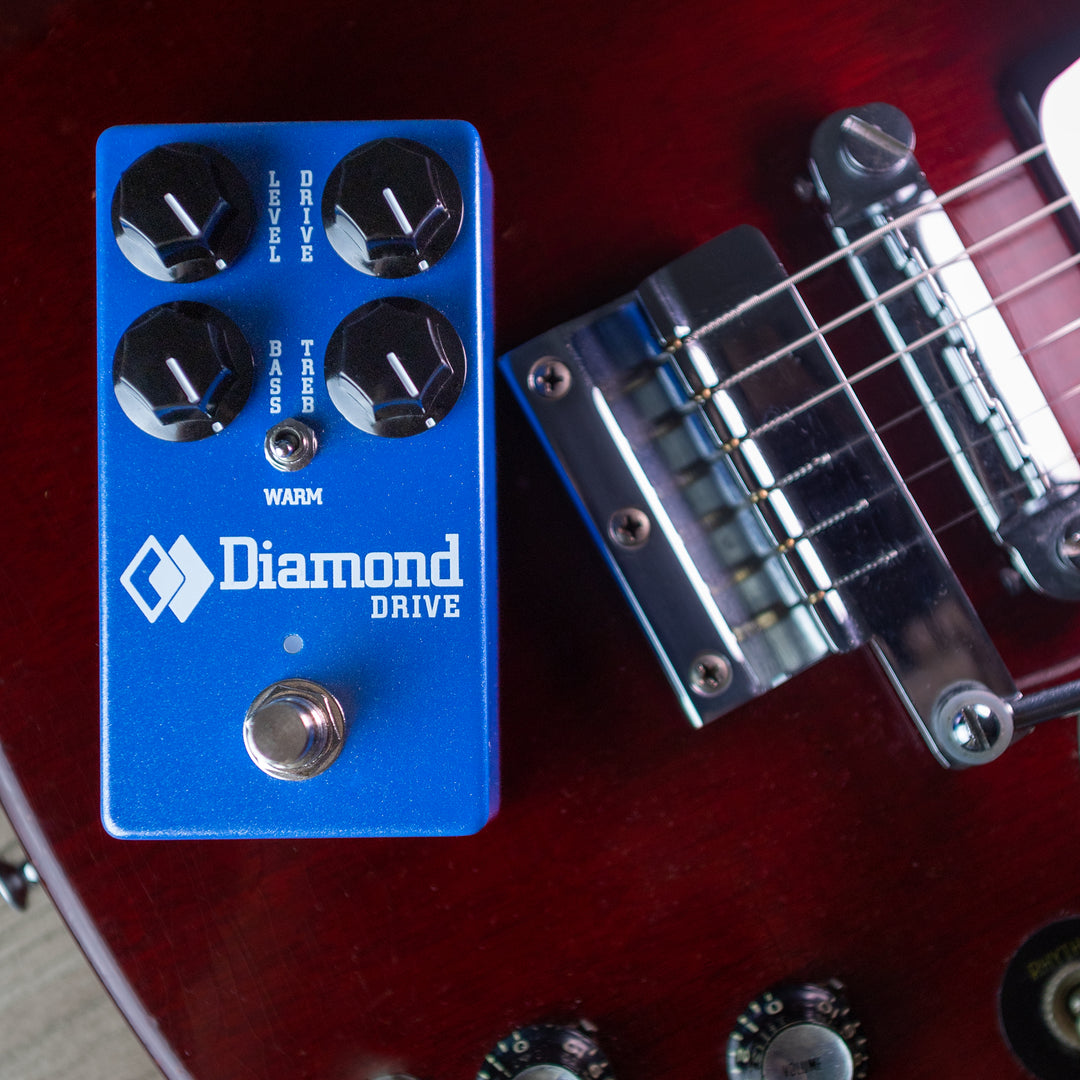

Diamond Drive Drenched in classic Diamond DNA, the next-gen Diamond Drive is built on a foundation of signature drive and EQ soundblocks. Distilling the most desirable and functional elements of the original J-Drive, Blaze and Fireburst pedals, the Diamond Drive combines a warm and wide-ranging overdrive built around a Premium Sound Burr-Brown Op-amp with a dual band, post-gain active EQ.
Dipped in Diamond DNA Drawing inspiration from past Drive, J-Drive and Fireburst designs, the new Diamond Drive combines our classic overdrive platform with our active Baxandall EQ, and might just be the perfect drive pedal.
Tailored for Any Occasion The Burr-Brown equipped drive section delivers anything from a gritty clean boost to thick, natural asymmetric saturation while the dual-band active Baxandall EQ and selectable Warm High Shelf Filter dial it all in to perfection.
The New Standard For the modern pedal-user's needs. Space saving design, without any loss of quality. The Diamond Drive package is complete with top-mounted jacks, 9-18VDC operation and relay based true bypass switching.
Main Features
Original J-Drive Style Gain Circuit with Burr Brown Integrated Circuit
Fireburst Inspired Dual Band Active Post-gain Baxandall EQ
Selectable warm switch for soft treble shelving filter
Soft-touch, True Bypass switching and top-mounted jacks
Powered by 9-18V DC PSU
Center negative tip 2.1 mm barrel jack
Current Draw: 17mA
Made in Canada
Techincal Info:
Input Impedance: > 1 MΩ
Output Impedance: < 10 KΩ
Switching: Relay True Bypass
Power Requirement: 9-18 VDC , negative tip, 2.1 mm barrel jack.
Current Draw @ 9 VDC : 17 mA
Baxandall EQ Bass Frequency: 150 Hz +|- 6 dB
Baxandall EQ Treble Frequency: 3 KHz +|- 6 dB
Warm Shelf Filter Frequency: 1 KHz +|- 4.5 dB
Dimensions: 122 x 66.98 x 39.64 mm (4.8 x 2.64 x 1.58 ")
